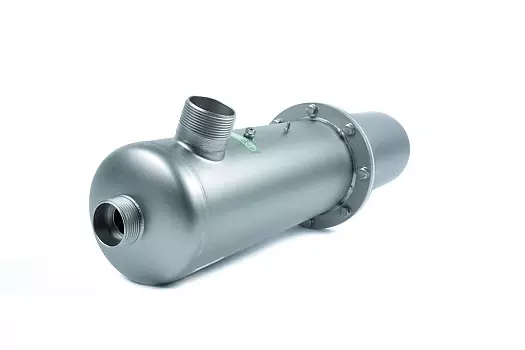

Van Remmen UVC flow-through systems
UVC disinfection systems for running water in pipes. For drinking water or process water.
UVC disinfection systems for running water in pipes. For drinking water or process water.
The Validated series was developed to ascertainably reliably disinfect water with a transmittance between 80% and 99%. This system is can be used for the potable water market, the processing industry, shipping, utility building, and installation engineering.
By performing a validation according to the NEN-EN 14897 standards, the disinfection achievements of Validated systems are measured and guaranteed.
Depending on transmittance, volumes of 0.6m3/h up to 148m3/h, can be treated with a UV-C dosage of 300J/m2.
General characteristics
– Reliable and effective disinfection
– Low maintenance
– Easy to use
– Energy efficient
– Low-pressure lamps with a long lifespan and high UV-C efficiency
Specific characteristics
– Validation according to NEN-EN 14897
– KIWA ATA assay-mark
The P series is an all-round system for the disinfection of processed water, water to be recycled, waste water, and cooling water: in general liquids with a transmittance ranging from 60% to 80%. The P-series stands for efficiency and ease. The systems can treat up to 360m³ water per hour, with a very low energy use and very limited maintenance costs.
General characteristics
– Reliable and effective disinfection
– Low maintenance
– Easy to use
– Energy efficient
– Low-pressure lamps with a long lifespan and high UV-C efficiency.
Specific characteristics
– Generally applicable in liquids with a transmittance between 60% and 80%
The W Series is a powerful UV system that reliably disinfects water with a transmittance (T10) between 40% and 60%. This series is suitable for waste water or reusable streams, among others. The W systems can be equipped with a wiping system, either hand or automatic wiping, which for the greater part limits the chances of a lower disinfection performance due to pollution.
Depending on transmittance volumes of 0.5 m3/h up to 120m³/h, can be treated with a UV-C dosage of 300J/m2.
General characteristics
– Reliable and effective disinfection
– Low maintenance
– Easy to use
– Energy efficient
– Low-pressure lamps with a long lifespan and high UV-C efficiency
Specific characteristics
– Widely applicable to disinfect liquids in the lower transmittance range
The Certified series gives water with a transmittance of 80% to 99% the quality and security of drinking water. All types of systems from this series underwent an extensive certification process to guarantee quality. The Certified series meets the CEN EN 14897:2006 and it is NIPH (Norwegian Institutian of Public Health) certified.
The appropriate UV dosage is determined by linking the accurately measured UV intensity with the simultaneously measured flow. If this dosage is insufficient, the process can be altered to ensure that the desired or required UV dosage is reached. When this cannot be reached by adjusting the flow, the water stream is shut off to assure that not a single drop will pass without the correct UV dosage.
Depending on the water transmittance volumes of 3.6m3/h up to 134m3/h, can be treated with a dosage of 400J/m2.
General characteristics
– Reliable and effective disinfection
– Low maintenance
– Easy to use
– Energy efficient
– Low-pressure lamps with a long lifespan and high UV-C efficiency.
Specific characteristics
– Certified according to CEN EN 14897:2006 and NIPH
– KIWA ATA assay-mark
– UV sensor for dosage monitoring
